Innovative Solutions for Low-Headroom Situations
The Slant Truss was a breakthrough development in the design of bridge cranes, as it added massively to the strength of a rail while adding only minimal weight. But some headroom is added by the Slant Truss.
Givens has developed a variety of methods of addressing the low-headroom issue.
Method #1: Rail-on-Rail Reinforcement
For low headroom situations one alternative to the Slant Truss is the “Rail-on-Rail” reinforcement.
It features a low-profile design that is heavier but combines the main rail components such as:
- A main rail component (e.g., C2000)
- A smaller rail (e.g., C1000), bolted together.
One alternative to the Slant Truss for low headroom situations is the “Rail-on-Rail” reinforcement. It features a low-profile design that is heavier but combines the main rail components such as the C2000, with a smaller rail (as shown, a C1000) bolted together.
Method #2: Raised End Truck Capabilities
This end truck is designated ETR or End Truck Raised in these capacities
- 250-ETR: 250 Kg Capacity
- C500- ETR: 500 Kg Capacity
- C1000- ETR: 1000 Kg Capacity
- C2000- ETR: 20000 Kg Capacity

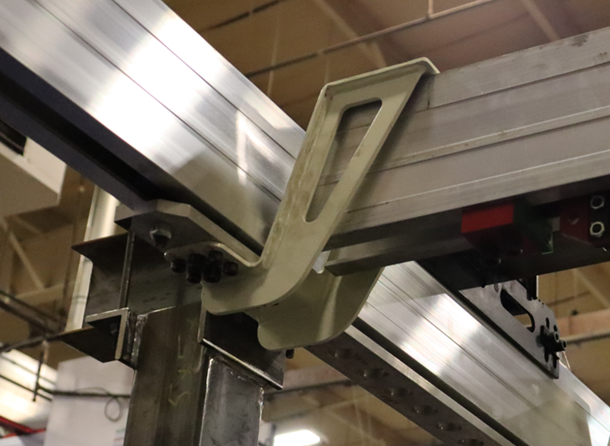

Another way to increase headroom when installing a bridge crane is through raised end trucks.
At Givens we have developed end trucks that elevate the bridge to the same level as the runways creating extra space. The hoist is free to travel the full distance between the runways.
Method #3: Raised Carriage Design

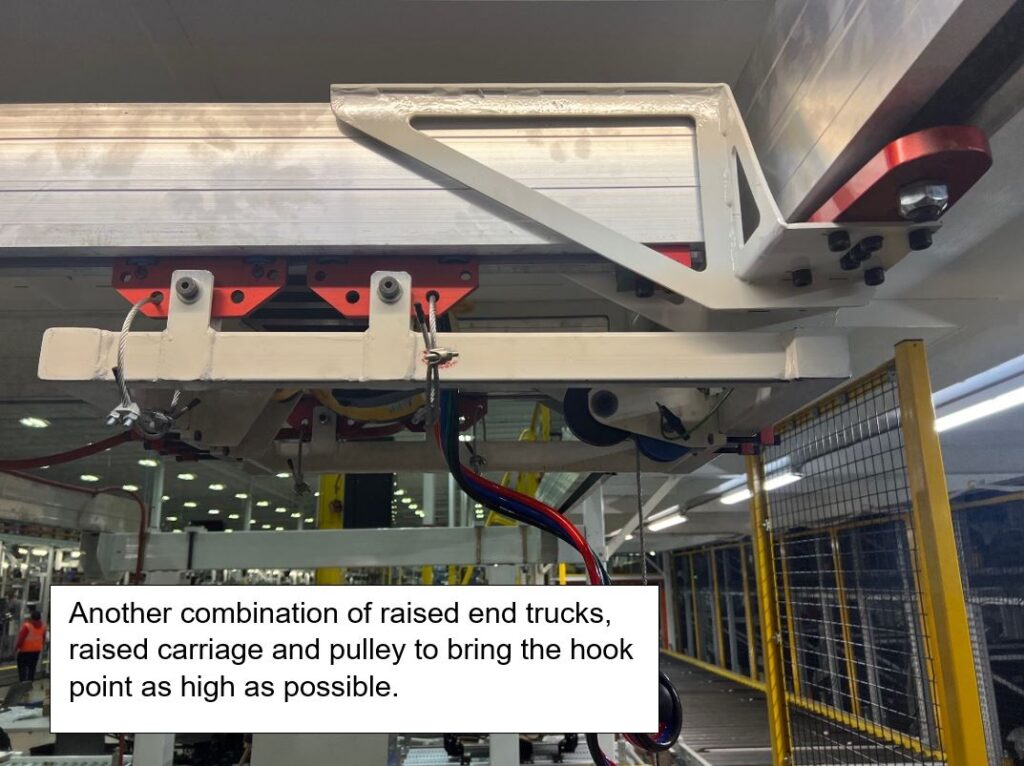

The raised carriage brings the hoist or balancer up between 2 bridges. This solution is ideal for:
- Applications with extremely limited headroom
- Operators who can accommodate the extra weight of the second bridge and carriage.

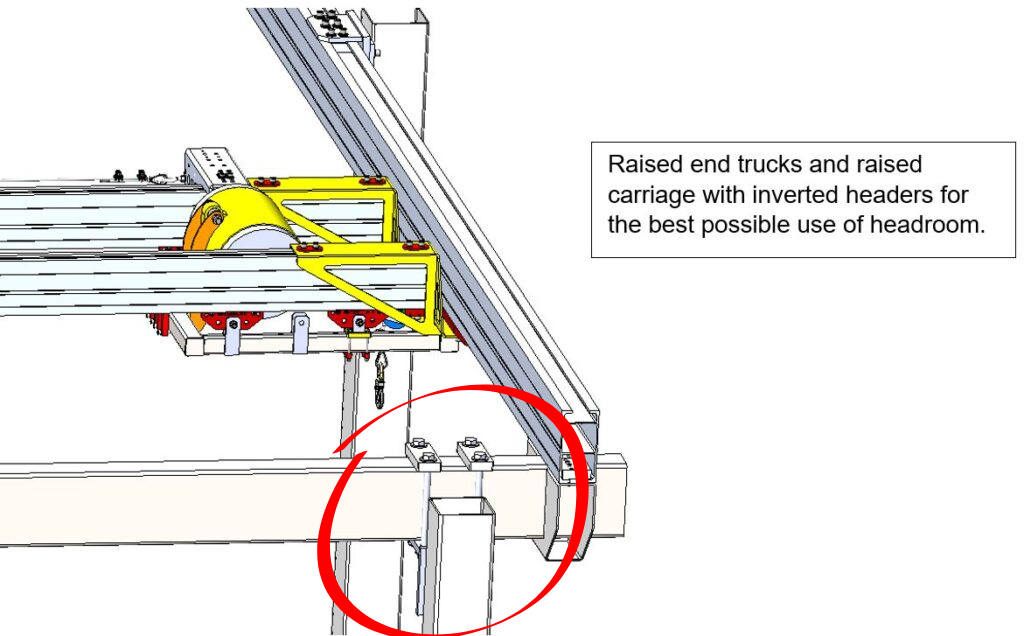

Method #4: Inverted Headers
The Inverter Headers provide another efficient way to reduce headroom requirements, ensuring optimal space utilization without compromising functionality.
